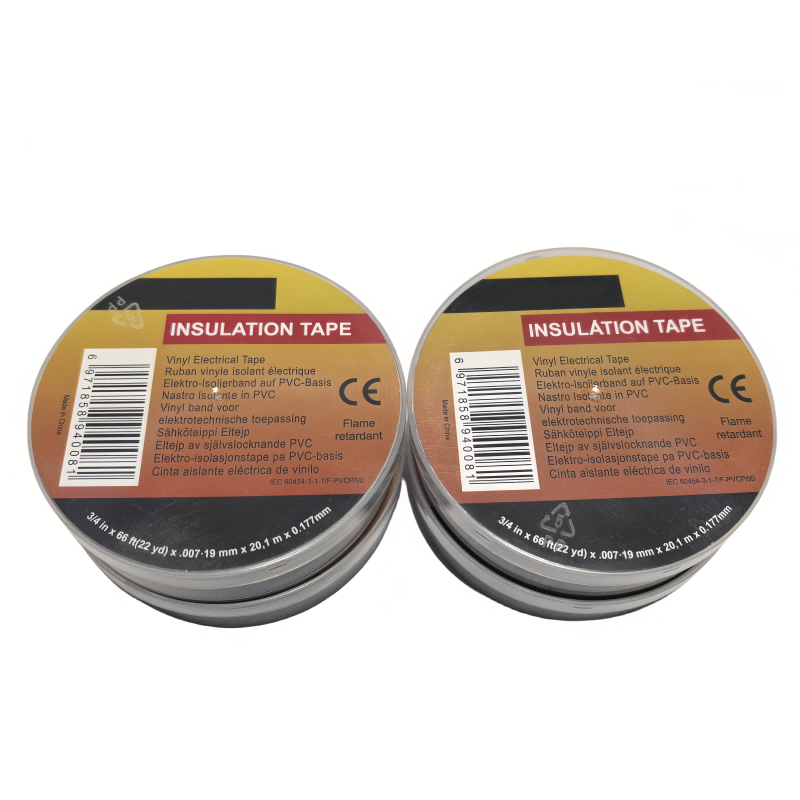

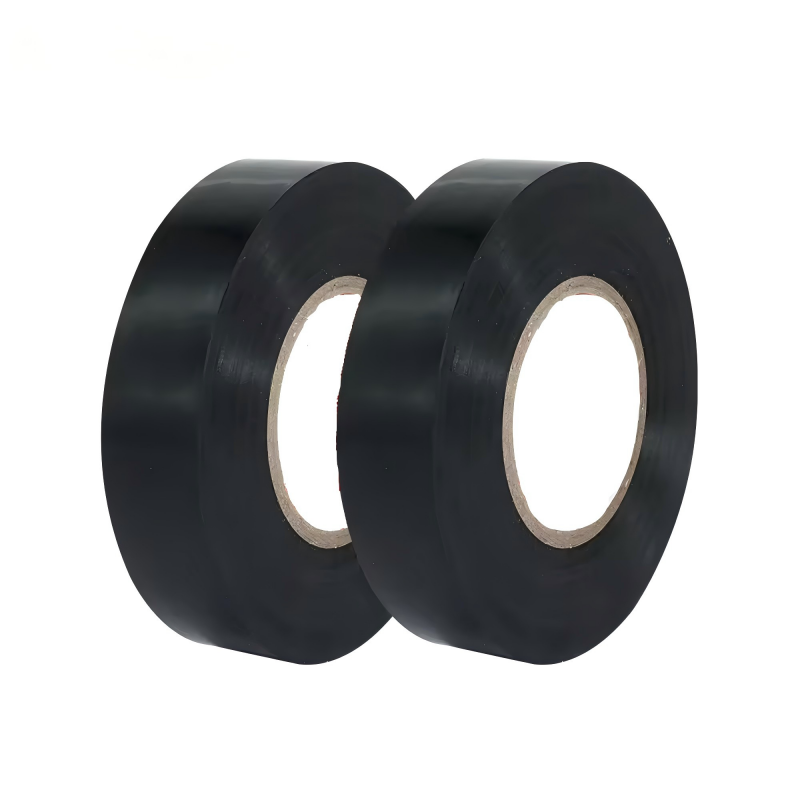

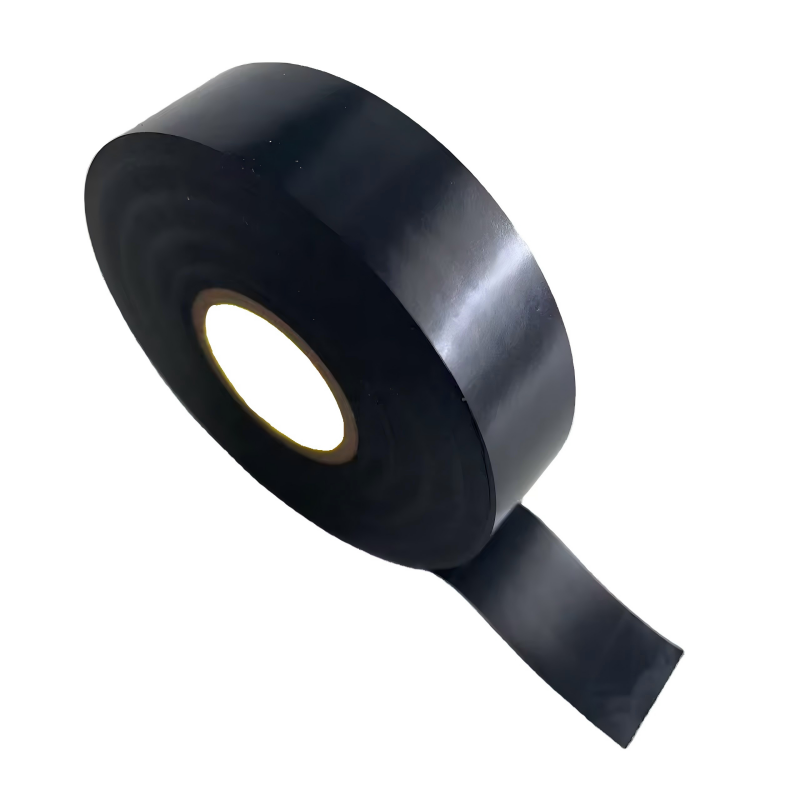

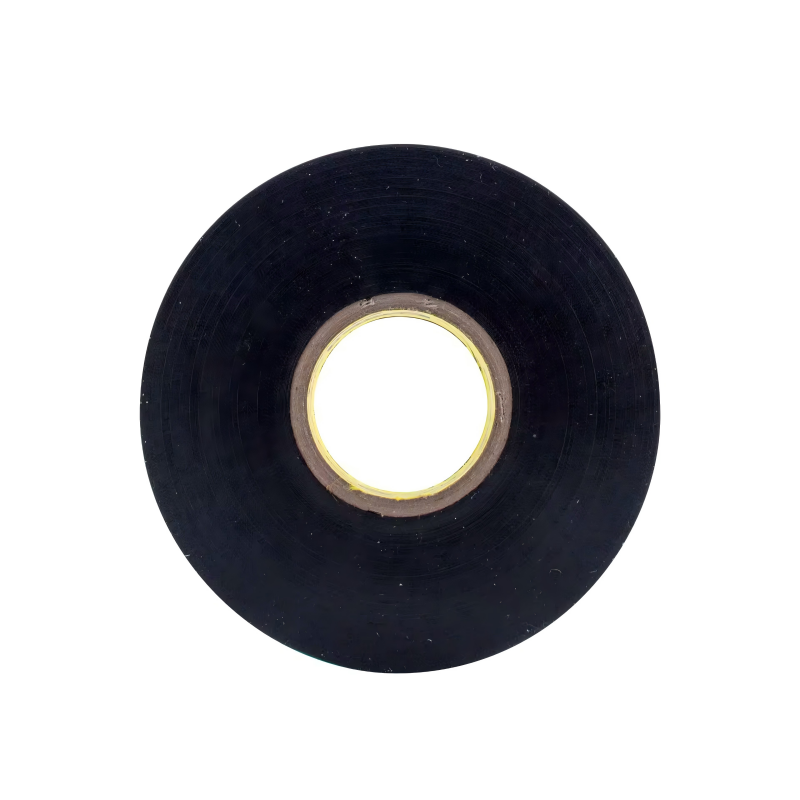

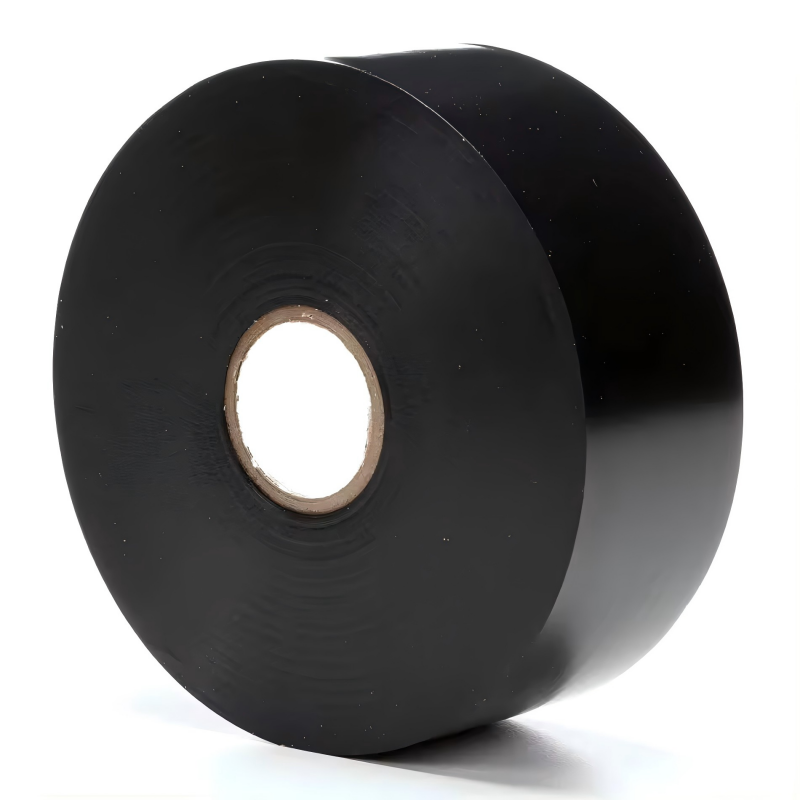

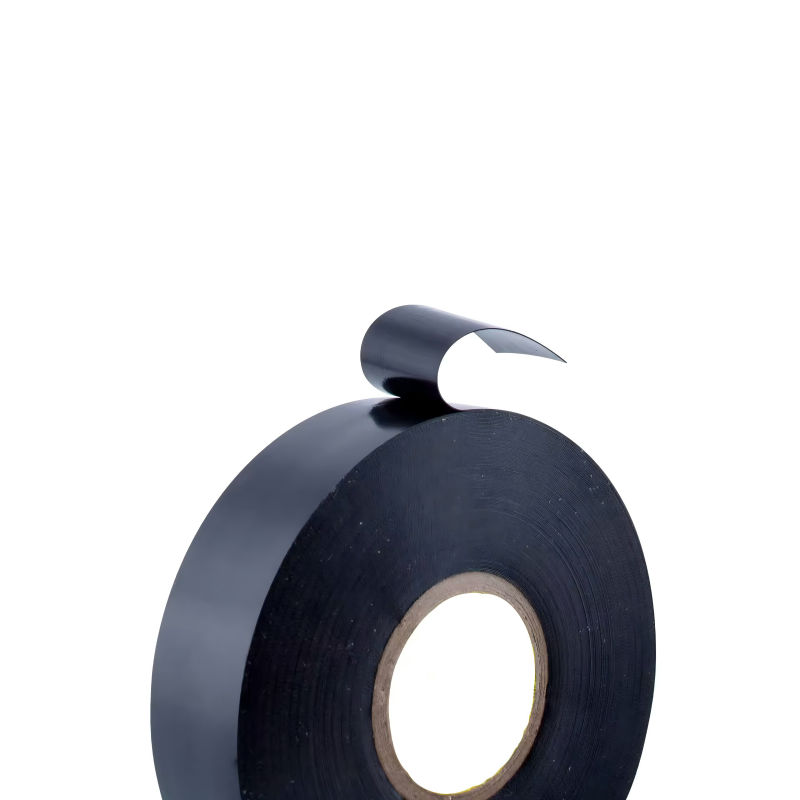

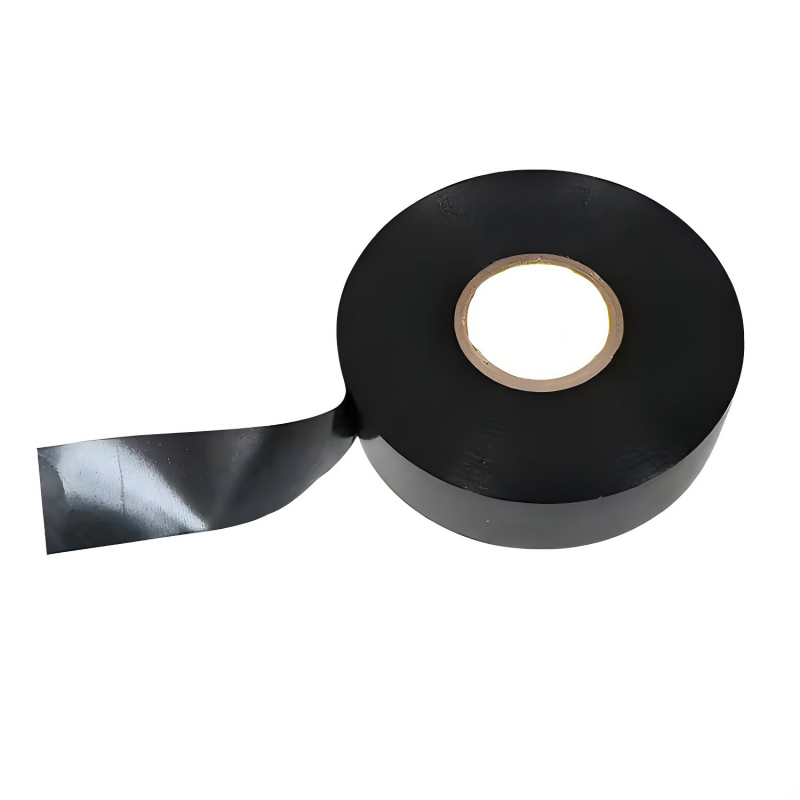

Product Description
Super 33 electrical tape is flame resistant and can withstand temperatures from -18 to 105°C. The pvc adhesive tape is environmentally friendly, meeting strict heavy metal content standards. Available in standard sizes and customizable colors, pvc insulation tape is ideal for insulating wires and cables up to 600V and provides reliable protection in various applications.
Technical Data:
|
Properties |
Unit |
Typical Data |
Test Method |
|
Total Thickness |
mm |
0.178 |
ATSM D1000 |
|
Tensile Strength |
N/cm |
25.0 |
ATSM D1000 |
|
Elongation At Break |
% |
250 |
ATSM D1000 |
|
Adhesion Strength To Steel |
N/cm |
2.5 |
ATSM D1000 |
|
Adhesion Strength To Backing |
N/cm |
2.3 |
ATSM D1000 |
|
Voltage Rating - Maximum |
V |
1000 |
UL510 |
|
Dielectric Breakdown Voltage |
kV |
8.0 |
ATSM D1000 |
|
Flame Resistance |
s |
1 |
ATSM D1000 |
|
Temperature Resistance |
°C |
-18 - 105 |
UL510 |
|
Sunlight, Cold Resistant |
Y/N |
Yes |
ATSM D1000 |
|
Content of Heavy Metal ·Lead, Cadmium ·Mercury, Chromium(Ⅵ) ·Polybrominated bipheyl |
ppm ppm ppm |
<30 <10 <10 |
US EPA3052 US EPA3060A US EPA3540C |
The upwards data on this catalogue is typical value, only for reference, the actual product data is according to the actual test result.
Availability:
· Standard Length: 20m
· Standard Width: 19mm
· Standard Core of Diameter: 25.4mm
Other sizes and cores are available upon request.
Top Super 33 Electrical Tape Features:
· Good toughness, not easy to aging, acid and alkali resistance, not easy to corrosion.
· Good viscosity withstands harsh bad weather.
· Flame resistant, long-lasting adhesion withstands temperature 0 to 220℉ (-18 to 105°C).
· Electrical insulation and protection for all.
· Wires and cables rated up to 600V.
· Highly resistant to UV rays, abrasion, moisture, alkali.
· Solvents and acids, corrosion and varying weather conditions.
· Compatible with rubber and syntheic splicing compounds.
Other Properties:
· Color: Black, Orange (Customizable)
· Shelf Life: 36 months when stored in original carton at 23°C×65%R.H.

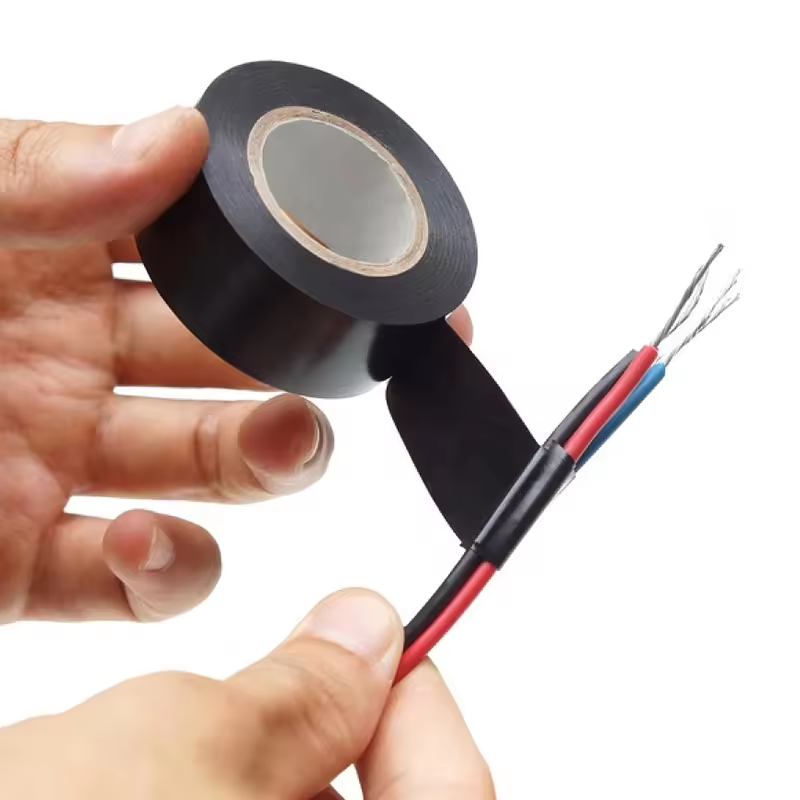

Top Super 33 Electrical Tape Applications:
· Primary electrical insulation for all wire and cable splices rated up to 600 volts and up to 105°C (220°F).
· Primary electrical insulation for 600 volt bus applications, and protective jacketing for low and high voltage bus.
· Protective jacketing for high voltage cable splices and repairs.
· Harnessing of wires and cables.
As a professional pvc electrical insulation tape supplier, Hebei Top Tape offers a wide range of PVC tape sizes to cater to different needs, and our team is always ready to assist you in selecting the right tape for your specific application. Our commitment to quality and customer satisfaction is evident in every roll of tape we produce. We are dedicated to delivering not just a product, but a solution that meets your exact requirements and exceeds your expectations.
What is the main material of the tape? What special properties does it have (such as heat resistance, waterproofness, chemical corrosion resistance, flame retardancy, etc.)?

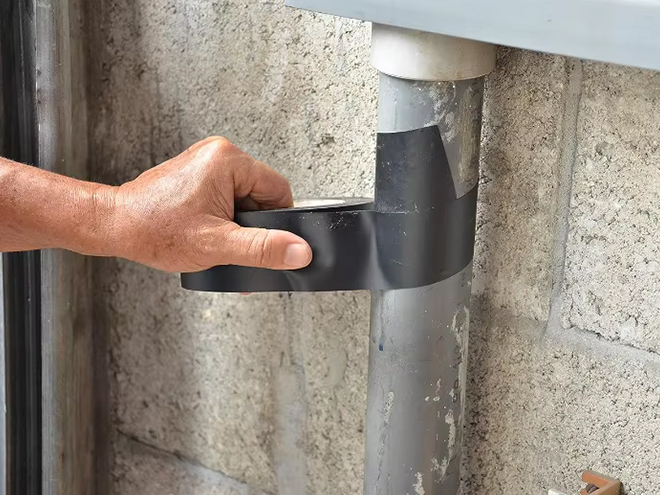

The main materials of adhesive tape include substrate, glue and release paper/film, and the special properties of adhesive tape vary according to the specific materials and formulations. High temperature resistant tapes can maintain stable adhesion properties in high temperature and humidity environments. These tapes are widely used for insulation, fixation and protection in high temperature environments in the fields of electronics, electricity, aerospace, etc. Waterproof tape usually has excellent waterproof performance and can effectively prevent water penetration. It is widely used in the field of waterproofing and leak repair, such as roof waterproofing, pipe repair, etc. Certain tapes have excellent chemical corrosion resistance and can resist the erosion of a variety of acids, alkalis, salts and other chemical substances. They are widely used in pipeline corrosion protection in chemical, oil field, marine and other fields. Tapes with good flame retardant properties can significantly reduce fire risks in applications in wires, cables, electrical equipment and other fields.
What are the specific specifications of the tape products? Do they comply with international/industry standards?
There are many specific specifications for tape products, which are usually customized according to different application requirements and market positioning. These specifications mainly involve three dimensions: width, length and thickness of the tape. All products comply with international/industry standards.
What is the unit price of the tape product? Does it include taxes and shipping?
The price of each customized product is different. Please consult the factory in detail for an accurate quote. We export on FOB terms.
Does the factory provide customized services for tape products?
We can customize the length, width, thickness, special properties, color, printing, packaging method, surface treatment of the tape and more.
Does the factory provide free samples for testing and trial? How to deal with the sample fee and shipping cost?
We provide free samples and bear the shipping cost for your testing and trial.
How to ensure stable product quality? Is there a complete quality inspection process and control system?
To ensure the stability of tape product quality, the factory will work hard in many aspects, including raw material selection, production process, quality inspection, quality control system, environmental control, customer feedback and continuous improvement. By establishing a complete quality inspection process and control system, we can effectively improve product quality and market competitiveness.To ensure the stability of tape product quality, the factory will work hard in many aspects, including raw material selection, production process, quality inspection, quality control system, environmental control, customer feedback and continuous improvement. By establishing a complete quality inspection process and control system, we can effectively improve product quality and market competitiveness.
How long is the quote valid for?
The quotation is valid within one week.
Is there a prepayment requirement? What is the percentage allocation of the deposit and how is the final payment paid and arranged?
The advance payment is determined by negotiation between the buyer and the seller, and the balance will be paid before or after the goods are shipped or after they arrive at the destination and are inspected and accepted. At the same time, both parties should also pay attention to potential issues such as exchange rate risk and credit risk, and take corresponding risk management measures to reduce transaction risks.
What are the latest demands and changes in the customer’s market?
We will closely monitor market trends and changes in consumer demand, and continuously improve product quality and production technology. Given our familiarity with the market, we will provide you with constructive suggestions on market development after we reach a cooperation agreement.
Can the factory provide some successful cases or customer feedback of brands that have cooperated with the factory?
We are a professional supplier of more than 50 small and medium-sized tape brands in the European and American markets. Like ISOFLEX in Brazil, MERCORY in Colombia, 211 in Poland and so on.
